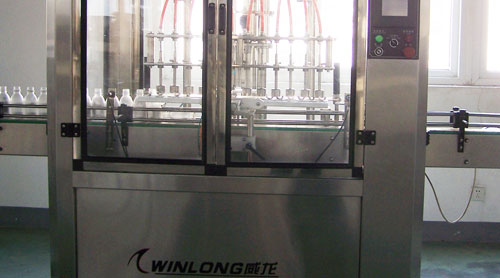

This machine is used for rinsing glass &plastic bottle by clean compressed air, which enters into the bottle, rinses the internal of bottle and then is absorbed out from another exit. Since the machine is fully closed, the powder, dust, water drops or impurities in bottle or on the wall of bottle can be blown away. The development and manufacture of the equipment fills in the gap in the market. With continuous improvement for several years, this kind of equipment has been launched in mass and obtained above 90% of domestic market shares.
l Simple structure, stable function, easy operation and low maintenance cost.
l Equipped hydronium generator, neutralize static, efficiently wipe off the dust on the inner wall of bottle.
l Automatic conveyor mounted bottle indexing gates to control container movement.
l No tools required nozzle mounts and bottle indexing gates.
l PLC control and man-machine control for bottle washing process.
l Effectively cleanup the contaminates such as dust and carton chip.
l The contaminates is drawn out from outlet of vacuum pipe, no circulate and no pollution.
l Constructed of stainless steel 304, face polished, easy take down and washdown.
l Fully enclosed with stainless steel panel and Plexiglas and gasketed access door, auto stop with door open.
l Washing quality satisfied the GMP regulation.
Suitable bottle:20～500mL Plastic bottles
Production capacity:12 cleaning nozzles 5000bph
Air pressure range:6～8kg/cm2
Air consumption:25m3/h
Power supply:220V 50/60Hz
Power consumption:0.75Kw
Single machine noise:≤70dB
Purified air:0.2μm
Cleaning time:3～5s
Net weight:500kg
Overall dimension:1200×800×1600
