Introduction

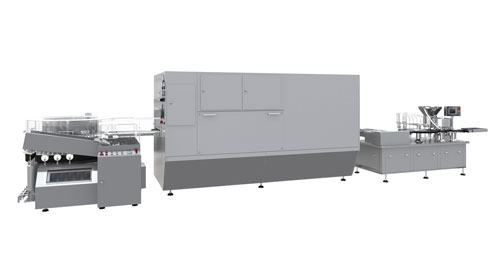

Auto oral solution liquid filling machine is the professional syrup filling machine which is develop and designed by our company, it is mainly used in pharmaceutical and food industry.
It has a reasonable design and beautiful appearance, the machine has the advantage of steady running, easy to operation and maintenance and convenient cleaning. the machine is the advanced level in international market, and it is full compliance with GMP requirement.
Characteristic
l 16/32-station volume pumps, pneumatic control valve of stainless steel execution filling, suitable for different of viscosity materials.
l All stainless steel adopt SS316 and SS304
l Structure is simple, with good appearance, convenient to clean up
l Pneumatic Anti-dripping needles and a back suction function, prevent drawing and drip phenomenon
l Frequency conversion adjust speed, and no bottles no filling
l Auto display and count on touch screen panel
l It complete meets the requirements of GMP
Technical parameter
|
S/N |
Item |
Description |
|
1 |
suitable bottle |
10ml-50ml bottle, 50ml-200ml bottles |
|
2 |
Capacity |
150-220bottles/min(hight speed machine) 50-100 bottles/min(low speed machine) |
|
3 |
electrical supply |
380V 50/60Hz |
|
4 |
power consumption |
≤2Kw |
|
5 |
tolerance of filling |
≤±2% |
|
6 |
compressed air |
0.6-0.7 MPa, 15-40m3/h |
|
7 |
single machine noise |
≤60 dB |
|
8 |
weight |
~3000Kg |
