Introduction

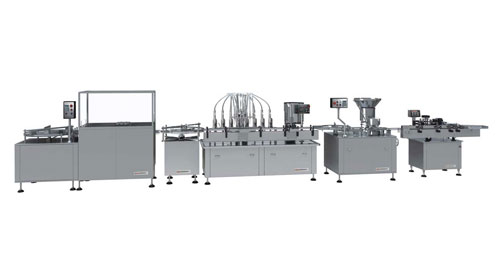

This liquid filling and sealing line consistes of ultrasonic bottle washing machine, DYG series Large dosage liquid filling and stopper-addingmachine, KGL series capping machine and labeling machine. It has advantage of high automation, reasonable layout, stable running status and production. This line integrates mechanical and electric parts. Due to tis reasonable designing, it can be easily cleaned and sterillized. It fully comply with GMP requirements.
Capacity
50-150 bottles per min(adjustable as per URS)
Characteristic
l All stainless steel adopt SS316 and SS304
l Structure is simple, with good appearance, convenient to clean up
l No bottle no filling.
l Frequency conversion adjust speed, and no bottles no filling
l Auto display and count on touch screen panel
l It complete meets the requirements of GMP
Machine consist of
Washing machine
Filling machine
Capping machine
Light inspection machine
Labeling machine
Main technical paremeters
|
Applied bottle specs: |
30-500ml plastic and glass bottle |
|
Power supply: |
380V 50 hz |
|
Power: |
1 kw |
|
Filling head No.: |
4/6/8/10/12 needles filling |
|
Filling error: |
≤ 1-2% |
|
Auro stopper-adding ratio: |
≥99.5% |
|
Equipped vacuum degree: |
0.066Mpa consumption:20m3/h |
|
Equipped compressed air pressure: |
0.3-0.4 Mpa consumption:20m3/h |
|
Single machine mosie: |
≤70db |
|
Total weight: |
7000kg |
|
Dimension: |
8640mm*1350mm*1653mm |
