Introduction

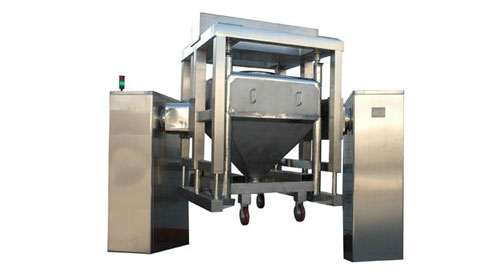

HZD Container Blender is elaborately designed and developed by our company on the basis of widely

research, absorption, and digesting of foreign advanced machine models. It has reasonable structure, stable

performance and convenient operation

It can hold mixing hoppers of various dimension and volumes, so it can meet production requirements of

variety of products with large batch size, and enhance production efficiency with its multifunction.

The whole machine is without dead corner, convex and concave, or exposed screws. The corners of exterior and interior surfaces of mixing hopper are treated to arc shape so there is no trapping corner and residue.

The exterior and interior surfaces have been polished to high degree, the roughness of interior surface is Ra0.2um,the exterior surface has been treated to semi-blight and the roughness is Ra≤0.4um. The cover of hopper is sealed with silicon rubber so the sealability is ensured during the mixing and makes the machine easy to be cleaned.

The evenness of mixing can be over 99%, and the loading coefficient is 50-80%. The machine is automatically controlled by PLC. Ultrared safety device and discharging butterfly valve are set to prevent

mistake of operation and ensure production safety.

All the materials are processed in the same vessel so there is no need of frequent transfer, addition, and

convey of material. It can effectively prevent dust contamination and cross contamination, and solve the

problem of loss and stratification of materials, so the production process is bettered and conforms to the

GMP standards for pharmaceutical production.

Feature

l All stainless steel parts are made with SS304.(SS316Lis optional)

l Special design for the container to get the many directions movement.

l Only need one blender, can be equipped many container

l Container is demountable and has omni-directional wheel, so it is a trolley too and moveable

l Touch screen and PLC Control System which is easy to be controlled

l Operation stable and lower noise

Main Technical Parameters
