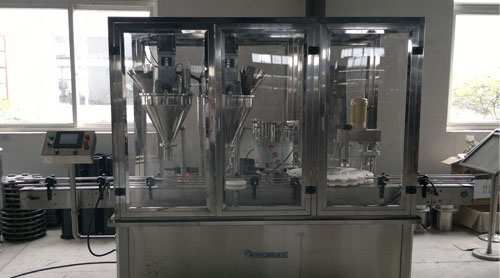

This machine is applicable to fill powder with auger filler measure dosing. Best suitable to fill powder into plastic and glass bottle with screw capping closure.
l Top-bottom funnel under filling nozzles, right position the powder discharging into bottle mouth.
l Auto cap vibrator to orient the cap into cap chute.
l Auto place cap right into bottle mouth.
l No bottle no fill Intelligence, prevent the stuff waste.
|
S/N |
ITEMS |
DESCRIPTION |
DGS-50A |
|
|
1 |
Filling nozzles |
2 |
|
|
|
2 |
Capping heads |
1 |
|
|
|
3 |
Filling range |
100g-1000g |
One type bottle need one type auger |
|
|
4 |
Optional cap type |
Pilfer-proof cap, screw cap, ROPP cap |
|
|
|
5 |
Filling precision |
≤±2％ |
|
|
|
6 |
Yield of capping |
≥99％ |
|
|
|
7 |
Power supply |
220V 50/60Hz |
|
|
|
8 |
Power consumption |
≤1.2kw |
|
|
|
9 |
Request Air pressure |
0.4~0.6MPa |
|
|
|
10 |
Net weight |
800kg |
|
|
|
11 |
Overall dimension(mm) |
2500×1200×1600 |
|
|
|
12 |
Speed |
100g |
50-60 bottle per min |
|
|
250g |
40-50 bottle per min |
|||
|
500g |
30-40 bottle per min |
|||
|
1000g |
10-20 bottle per min |
|||
