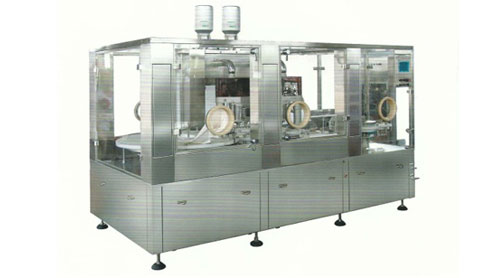

KFS seiries powder filling and plugging machine is a new generation of high speed screw filling machine which our company developed based on the former 2 head powder filling machine, it adopts guaduators system to conduct high speed filling process.
l Filling speed is high, servo motor driven, the filling precision is high.
l Plate type conveyor,star wheel and guaduator linked together firmly, stable running and précised positioning.
l Different type of filling auger meet different the needs of filling different powder
l PLC control the whole process, high automation degree
l Touch panel control, can set the filling dosage without stopping the machine
l Speed controlled by inverter
l Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm
l Auto counting function
l Standard electric installation, safety guarantee on operation.
l Auto stop filling when filling auger touches filling nozzle and alarms
l Easy to change the change part, filling dosage adjustable
l Optional acrylic glass hood, laminar flow, sealed air outlet device
l Optional pre-fill and after-fill nitrogen filling device
l The whole machine is designed according to GMP requirements
|
Suitable bottle range |
7~30ml (tubular or molded vial),50ml, 100ml |
|
Speed |
45-80 bottles/min as per 30ml bottle |
|
power supply |
220V 50Hz |
|
Total power |
3kw |
|
Filling error |
≤2% |
|
Auto stoppering ratio |
≥99.7% |
|
Bottle breakage ratio |
≤0.1% |
|
Single machine noise |
≤70dB |
|
Vacuum degree |
-6×10-2Mpa 14m3/h |
|
Weight |
800kg |
|
Dimension |
2850×1000 ×1800（mm） |
